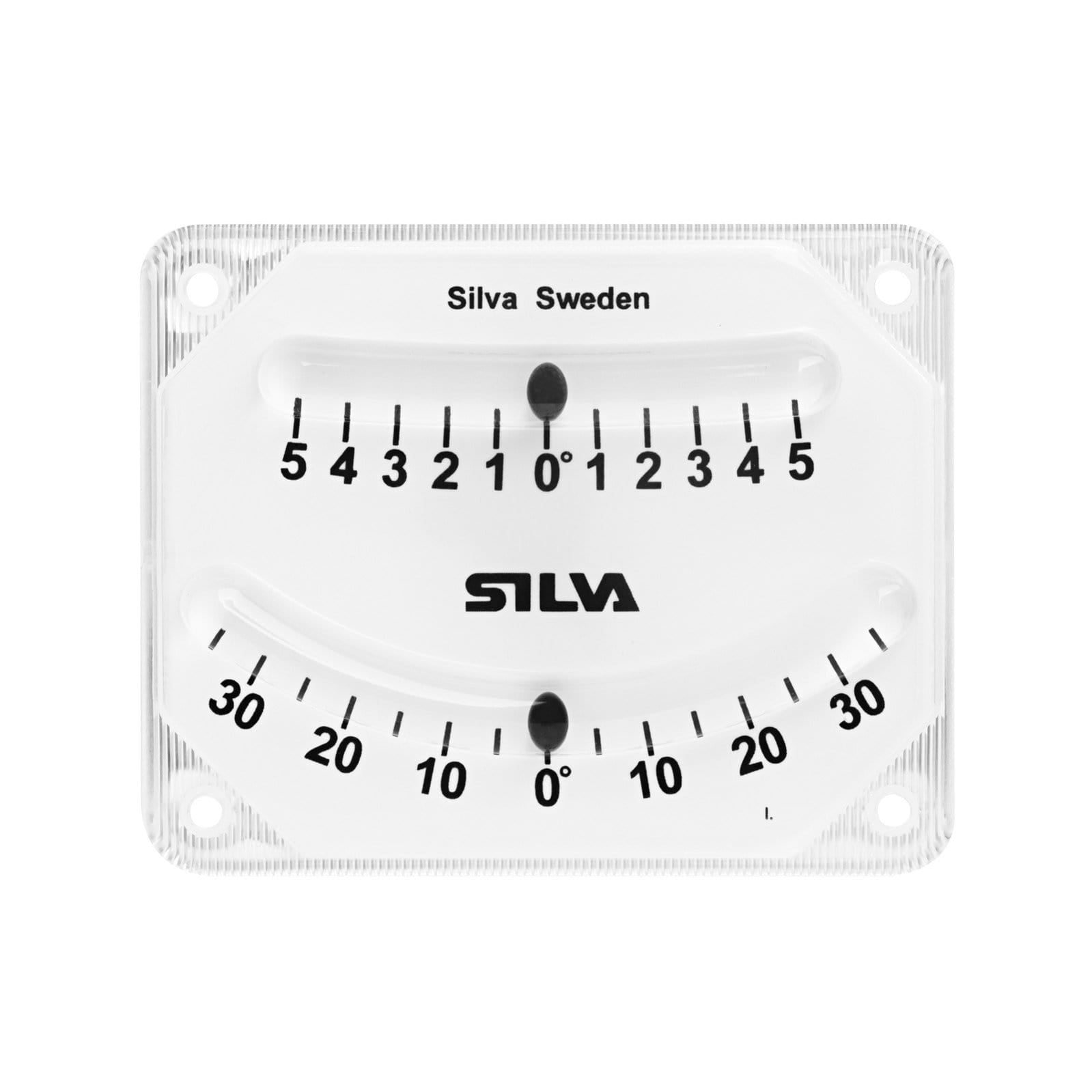

The SILVA Clinometer is a popular clinometer for all types of vehicles. It has two scales, one ±35° and a fine tuning scale ± 5°.
• STEADY MOUNTING
Keeps in place, even in rough conditions
• EASY TO READ- Safe and swift reading so you can set the right course
The SILVA clinometer is used for checking the heeling angle on sailing boats and for the power-trim check on powerboats. It is also a perfect working instrument for other applications, such as making sure that different vehicles and equipment sits “level” or keep the desired a angle.
For angles up to ± 5°, read the top precise scale, for angles over ± 5°, use the lower scale for readings up to ±35°.
Specifications:
Article number | 35188-901 |
---|
Graduation | ± 5° / ±35° |
---|
Material | Acrylic |
---|
Resolution degrees / mils | 1° / 5° |
---|
Scales | ± 35° and ± 5° |
---|
Size | 10x80x100mm |
---|
Temperature operating range | -20 to +60 °C |
---|
Water resistance | IPX8 – Waterproof |
---|
Weight | 47g |
---|
